   1960 VW Double Cab

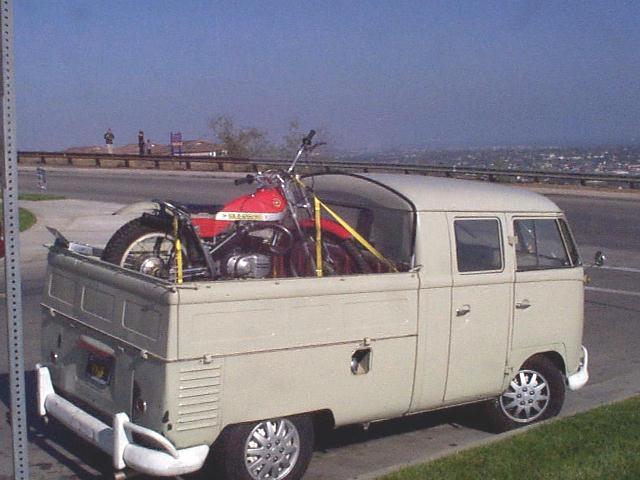

1960 VW Double Cab Pickup
Engine
Engine
2.0L TYPE IV, BUILDER - Scott Fraser

Stock Cam & Crank - Ground & Polished and 41MM Intake & 34MM Exhaust valves with 3 angle seats and Heads done by Boston Engine Exchange

Bosch CIS FI System 1978 2.1L Volvo adapted by Scott Fraser with consulting by Miller Fuel Injection.

Custom Intake system with Porsche 924 Throttle body.

Thermocouples on each cylinder head, 3 olil monitoring locations and Oil Cooler Air temp monitoring.

Oregon Performance Products Cooling Shroud
History
History
DOUBLECAB
Built Feb 29th, 1960   (leap year truck)
It was used by Keddie Resorts, CA from 1960 to 1965 as a truck to pick up guests from the airport and make runs into town. The Truck sat in a field near Mt. Shasta from 1965 to 1994.  In that time, it's engine and transmission was taken and it was left to die.  James Froggatt of Redding CA. rescued it and got it back to life.  The worst damage that it had sustained from the long period of misuse was for the lower rear rocker panel to rust out from the inside.  It was in remarkably great shape.  Everywhere you look the undercarriage was coated with a thin layer of Mt. Shasta red dirt.

I bought it from James in Jan. 1998 and brought it to Southern California
